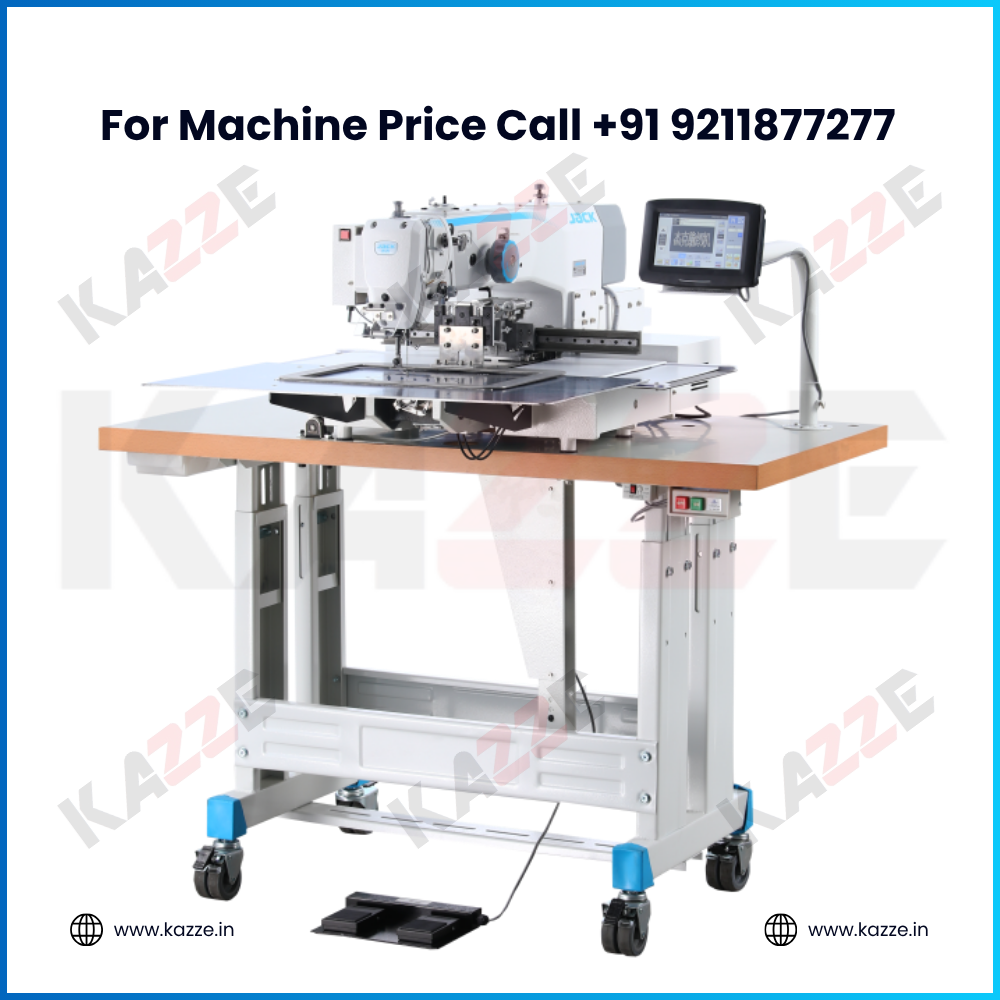

Jack JK-T3520MA-D Industrial Sewing Machine

Jack JK-T3520MA-D Computerized Automatic Pocket Welting Machine – Programmable Cut Pocket Sewing Machine for Trouser, Suit & Garment Manufacturing

Achieve flawless welt pocket quality on every single piece with the Jack JK-T3520MA-D Computerized Automatic Pocket Welting Machine — a next-generation programmable industrial pocket setter with a built-in laser cutter, zero-off-thread sewing start, and a massive 999 pattern memory. Purpose-built for sewing cut straight and slanted pockets  with one or two flaps, with or without a flap  and with the possibility of sewing with a zipper tape and attaching a pocket bag   the JK-T3520MA-D is the ultimate single-machine solution for India's trouser, suit, jeans, and export garment factories. Available at Kazze.

✅ Key Features:

• Zero Off-Thread Sewing Start — No off-thread at the beginning of sewing  delivering more stable, durable, and defect-free seams right from the very first stitch   eliminating the thread tail trimming step and saving significant production time
• Built-in Laser Pocket Cutter — The pocket opening is cut before sewing using a laser integrated directly in the machine head   delivering razor-sharp, perfectly aligned pocket cuts with zero manual handling
• 999 Pattern Memory via USB — Up to 999 patterns can be imported via USB, easily edited through the computer, and also created directly on the operation screen   switch between pocket styles in seconds with no downtime
• Electronic Intermediate Presser Foot — The height of the electronic intermediate presser foot can be set according to the thickness of the fabric  preventing skipped stitches, thread breaking, and damage to sewing garments across all material weights
• Extra-Wide XY Guide Rails — The standard width of X and Y guide rails is wider than most competing products  especially for the sewing of extremely thick materials, the feeding is more stable and the feeding accuracy is higher
• Auto Emergency Stop on Thread Break — Machine stops immediately if the thread breaks  avoiding waste and rework   protecting fabric quality and eliminating costly defective pieces
• Fully Programmable on Touchscreen Panel — All operating parameters including pocket type are programmed on a clear control panel equipped with a USB port enabling entering external data or transferring settings to another machine
• Sews Straight & Slanted Pockets — Handles both straight and slanted pocket types  with one or two flaps  at sewing speeds of up to 2,500 stitches per minute for maximum high-volume production output
• Adjustable Piping Width & Length — Sews pockets with piping length of up to 24 cm and a total piping width from 1 to 5 cm   covering every trouser and suit pocket standard
• Energy-Saving Stepper Motors — The machine is powered by energy-saving and reliable stepper motors   reducing power consumption while maintaining peak precision and performance throughout long production shifts
• Height-Adjustable Electric Work Table — Ergonomically adjustable work table with pneumatic height control   making it comfortable for operators of different heights and reducing operator fatigue
• Rotary Catcher Hook System — Delivers clean, secure lockstitch seams on all pocket types  no skipped stitches, no loose threads, no rejects

📐 Technical Specifications:

🏭 Ideal For:

• Welt & cut pocket sewing on trousers & jeans
• Single & double flap pocket attachment on suits & blazers
• Zipper pocket sewing on formal trousers & dress pants
• Slanted pocket production on chinos & casual trousers
• Export garment factories needing automated, defect-free pocket welting

📞 For Price & Availability: Call +91 9211877277 🌐 www.kazze.in
