Jack M5 Industrial Sewing Machine

Jack M5 Computerized Automatic Template Pattern Sewing Machine – Industrial Programmable Sewing Machine for Pocket, Collar & Flap Stitching

Transform your garment production with the Jack M5 Computerized Automatic Template Pattern Sewing Machine — a next-generation programmable industrial sewing machine designed for perfect, repeatable pattern stitching on pockets, collars, flaps, cuffs, epaulettes, and small garment components. Built for sewing on pockets, flaps, collars, epaulettes, and other small elements, the Jack M5 operates within an 800 x 350 mm sewing field and features a built-in vacuum suction system with a 270×270 mm suction area for easy material positioning  — eliminating the need for manual ironing or pre-pressing of templates.

✅ Key Features:

• Large 800 × 350 mm Sewing Field — Sew as freely as drawing on a blank sheet — ideal for complex patterns, pocket shapes, and decorative seams
• RFID Auto Pattern Recognition — Machine automatically recognizes templates via RFID tags and loads the correct sewing design instantly — no manual program selection needed
• Built-in Vacuum Suction System — 270×270 mm suction plate stabilizes fabric and speeds up template loading — no pre-ironing required, saving significant production time
• Direct Drive Servo Motor — Servo motor built directly into the machine head with stepper motor XY axis control for smooth, regular transport in all sewing directions
• 999 Pattern Memory Storage — Sewing parameters and patterns can be saved in internal memory for up to 999 patterns or exported via USB flash drive
• Touchscreen LCD Control Panel — Easy on-machine programming — draw or edit patterns directly on the panel or import CAD files (DXF, DST, AI, PLT formats)
• Intermediate Presser Foot System — Allows the machine to sew varying thickness materials without skipping seams or creating uneven stitches
• Double Capacity Hook — Enlarged hook with double bobbin thread capacity allows working with thicker yarns and longer sewing runs between bobbin changes
• Lower Thread Break Sensor — Automatically detects bobbin thread breakage and stops the machine to prevent defective seams
• Optional Laser Cutter — Compact laser option expands applications to cut collars, cuffs, piping, vents, flaps, and gloves
• Compatible with DPX5 & DPX17 Needle Systems — Handles both lightweight and heavyweight garment materials from a single machine
• CAD Software Compatibility — Supports files from AutoCAD, CorelDraw, and other major design platforms for precise pattern import

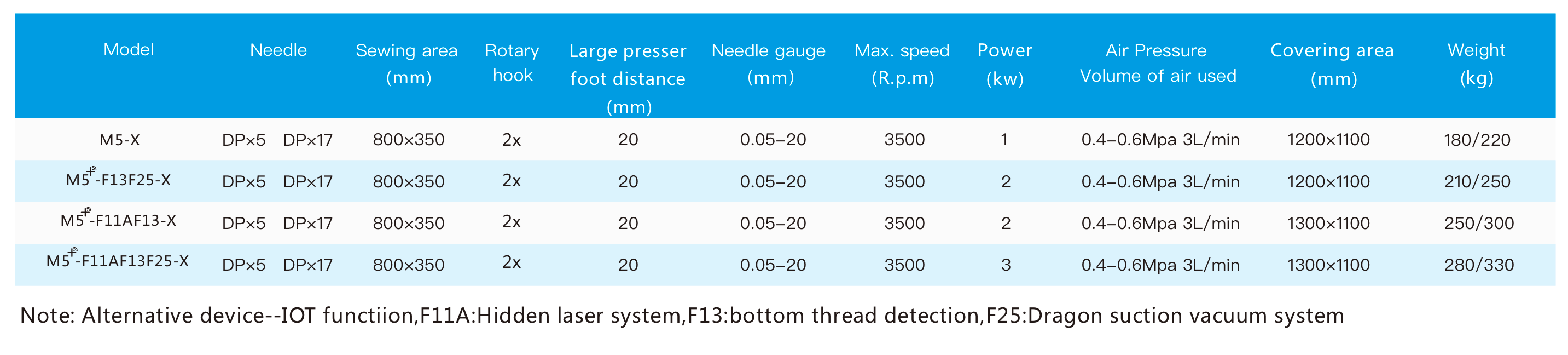

📐 Technical Specifications:

🏭 Ideal For:

• Pocket stitching & flap attachment on trousers & shirts
• Collar, cuff & epaulette sewing on uniforms & formal wear
• Decorative pattern stitching on denim & outerwear
• Logo & label stitching on sportswear & workwear
• Export garment factories needing precision & repeatability

📞 For Price & Availability: Call +91 9211877277 🌐 www.kazze.in
